Rocking Piston Type Dry Vacuum Pump / DOP Series

Rocking Piston Type Dry Vacuum Pump

DOP Series

DOP-40D DOP-80S DOP-80SP DOP-120SY DOP-181SA DOP-301SB DOP-400SB

DOP-40D

DOP-80S

DOP-80SP

DOP-120SY

DOP-181SA

DOP-301SB

DOP-400SB

DOP-40D
Standard type / Two-stage exhaust system / Thermal protector built-in / Power supply cord

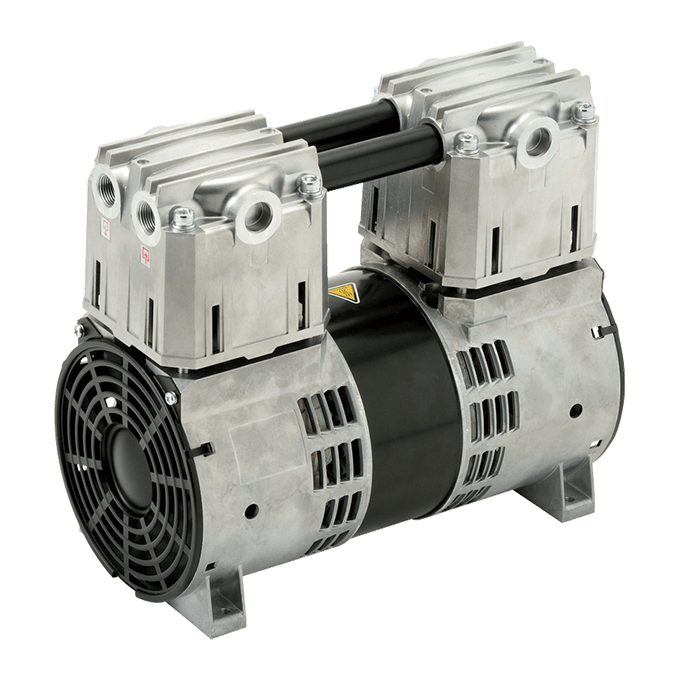

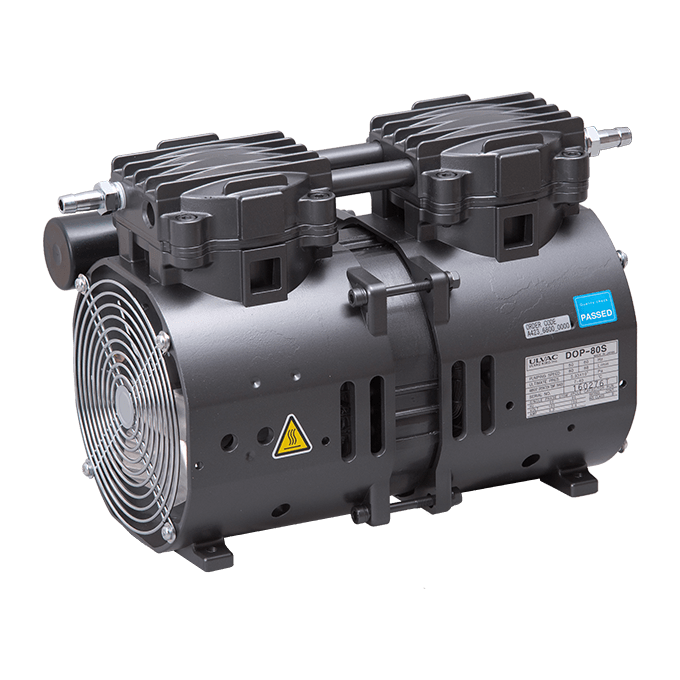

DOP-80S DOP-181SA
Standard type / One-stage exhaust system / Thermal protector built-in / Power supply cord

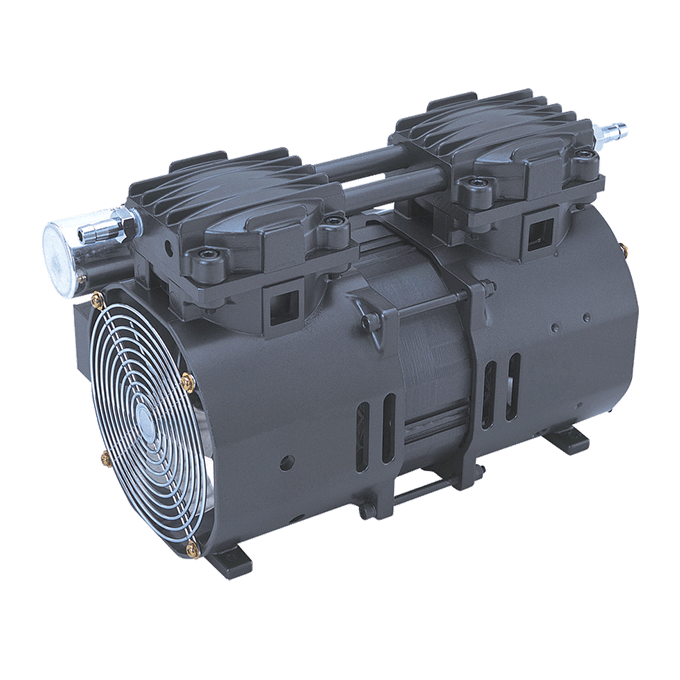

DOP-80SP
Pressurized type / 1-step exhaust system / built-in thermal protector / Power supply cord

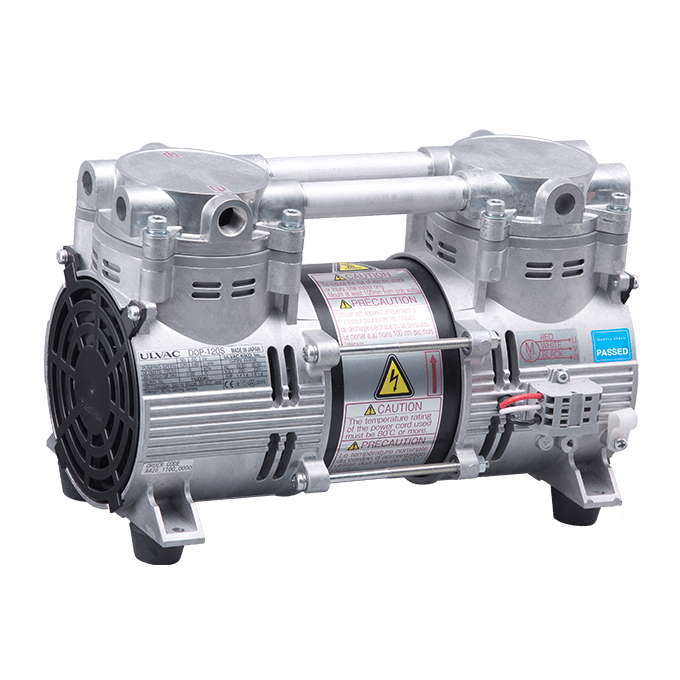

DOP-120SY
Standard type / 1-step exhaust system / built-in thermal protector

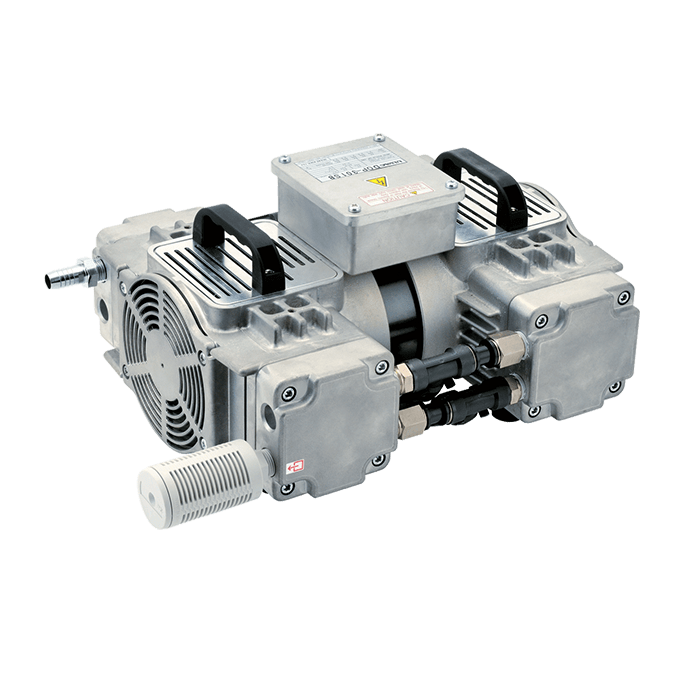

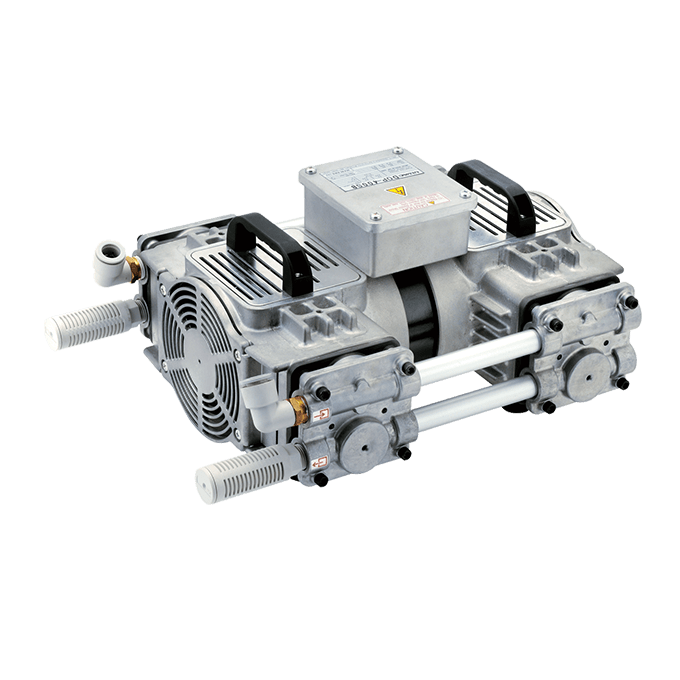

DOP-301SB DOP-400SB
Standard type / 1-step exhaust system / built-in thermal protector / with input terminal block (without cord)

Playlist

Select a video from the playlist.

Rocking Piston Type Dry Vacuum Pump DOP-181S

Features

	Compact size with large displacement.
	Dry vacuum pump using no oil in the gas contact area.
	Rich lineup available to suit your application.
	Safety design with built-in automatic reset type thermal protector.
	Operation is possible from atmospheric pressure.
	Continuous operation in all pressure zones is possible.
	Simple structure and easy maintenance.

Applications

DOP-40D DOP-80S DOP-80SP DOP-120SY DOP-181SA
	Vacuum chuck, vacuum tweezers.
	Absorption and transfer of automatic machines.
	Vacuum packing printing machines.
	Tip mounter.
	Medical equipment.
	Oxygen generator.
DOP-301SB DOP-400SB
	Vacuum chuck, vacuum tweezers.
	Semiconductor industry. (Handler, Mounter)
	FPD industry. (Bonder)
	Printing machine.
	Injection molding.
	Adsorption and transfer.
