High Speed Spectroscopic Ellipsometer
Manual Type

UNECS Series

UNECS-Portable UNECS-1500M

Manual Stage Type for Ø150 mm samples.

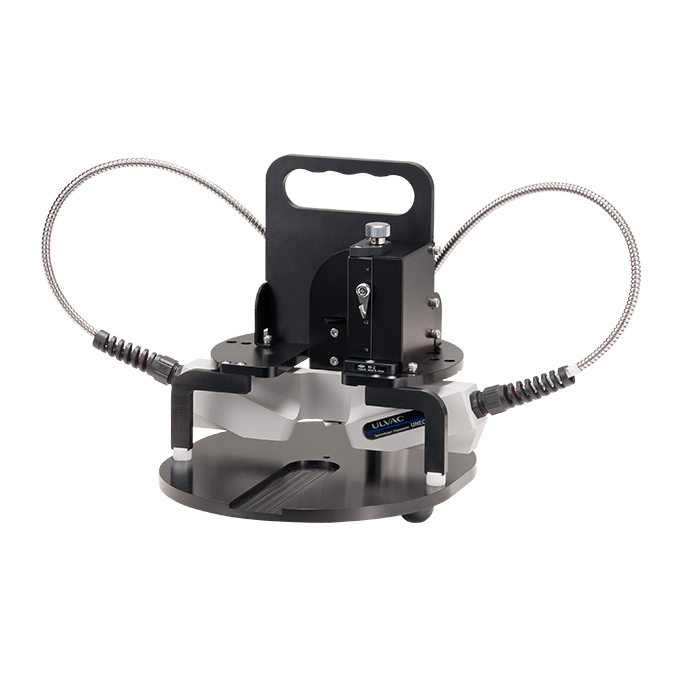

UNECS-Portable
UNECS-Portable measurement unit weight is only 2.2 kg.

It is easy to be carried out for vacuum equipment site acceptance tests and can measure large-size samples by detaching its sample stage and putting it directly on samples.

UNECS-1500M
UNECS-1500M is easy to locate measurement points by the easy-to-use manual R-θ stage.





Features

High-speed Measurement :
The snapshot measurement method is realized and the high-speed measurement is 20 ms per point.

Visible Spectral Range :
The spectral wavelength range can be selected. The standard type is 530 nm to 750 nm and the visible spectral type is 380 nm ~ 760 nm.

Compact Sensor Unit :
The sensor unit is light-weighted and very compact. It consists of an optical element that does not have any rotating mechanism. In addition, there is no need for periodic maintenance.

Strong Product-line :
There is a strong product line with the portable type, the manual/automatic stage type, the built-in type and the large substrate type.



Applications

Measurement for transparent or semi-transparent thin films thickness(D), reflective index(N) and extinction coefficient(K). (Oxide film, nitride film, photo-resist film, ITO film, etc.)





Contact us for more product information and specifications.

 
