Thermoelectric Evaluation System
Thermoelectric Conversion Efficiency Evaluation System for Small Modules


Measure thermoelectric conversion efficiency for thermoelectric material alone and a pair of thermoelectric materials.

This system can evaluate not only power generation but also the conversion efficiency of thermoelectric modules. The conversion efficiency is evaluated from the current dependency of power generation measured with a four-probe method and heat flow measured with a heat flow meter.

High temperature part can reach up to 500°C (standard specifications), while low temperature part is cooled with water flow.


Capable of measuring data of heat flow and power generation and then measuring conversion efficiency.

Capable of evaluating the output characteristics of small modules with 2 to 10 mm (square) x 1 to 20 mm (height).

High temperature part can reach up to 500°C.

Simple operation with control software.



Evaluation of power generation amount and heat flow.

Evaluation of module conversion efficiency calculated from power generation and heat flow.

Evaluation of power generation amount and heat flow with thermoelectric material alone.

Performance and lifetime evaluation of thermoelectric module.

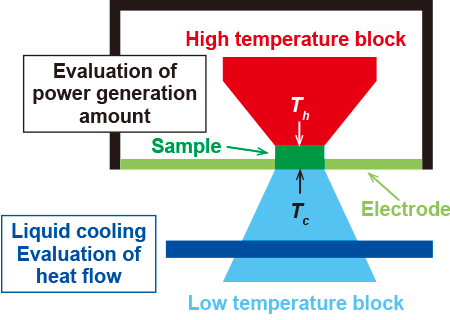

Sample System Chart

Temperature difference of sample
Th : Sample temperature on high temperature part
Tc : Sample temperature on low temperature part
